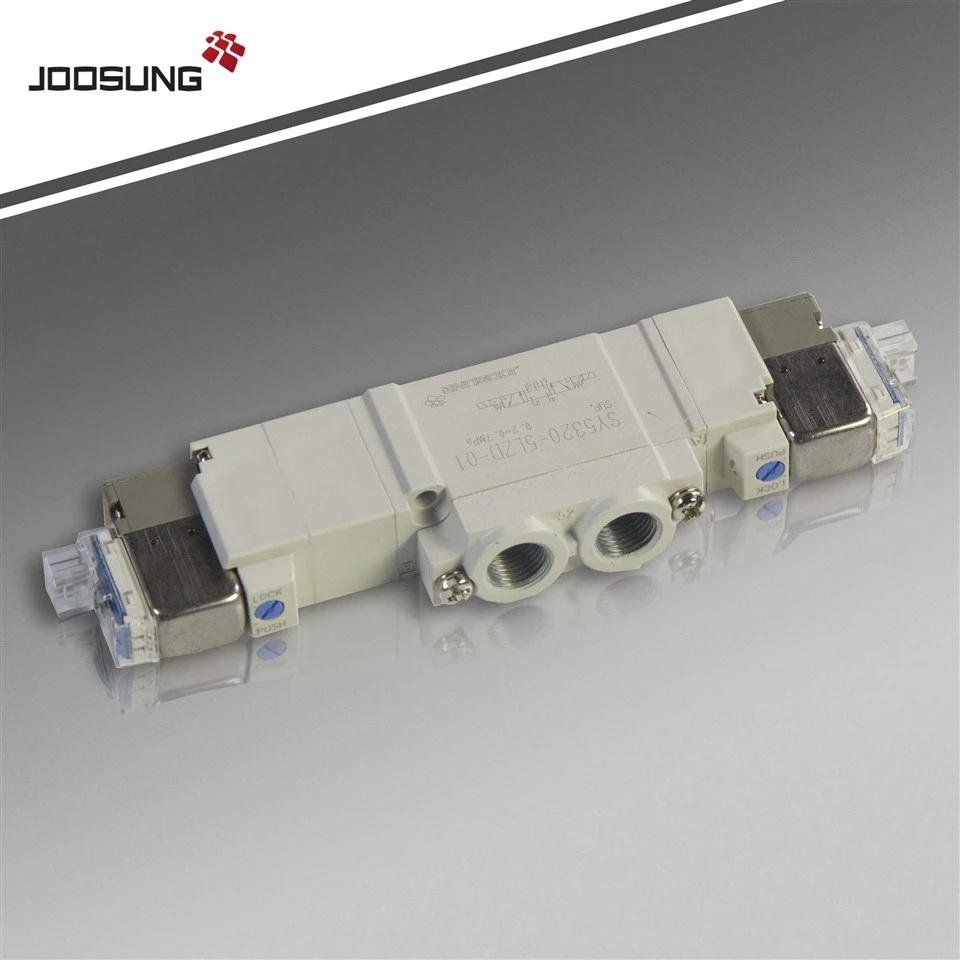

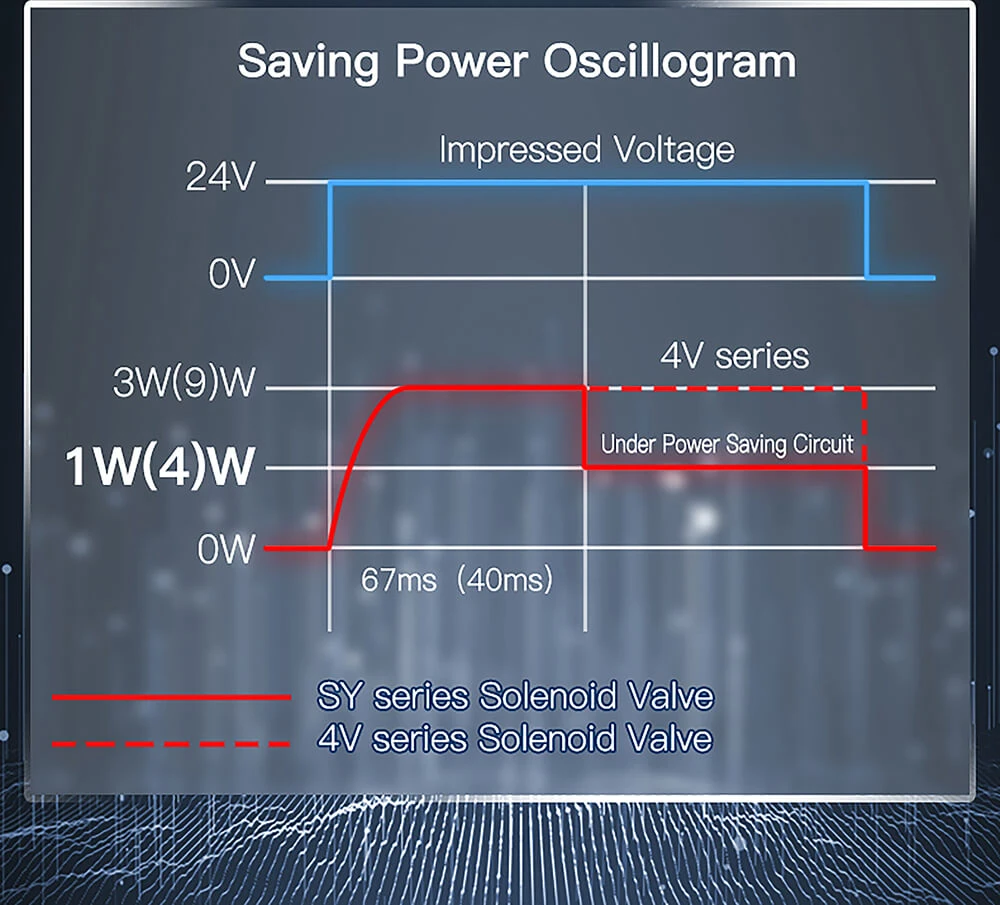

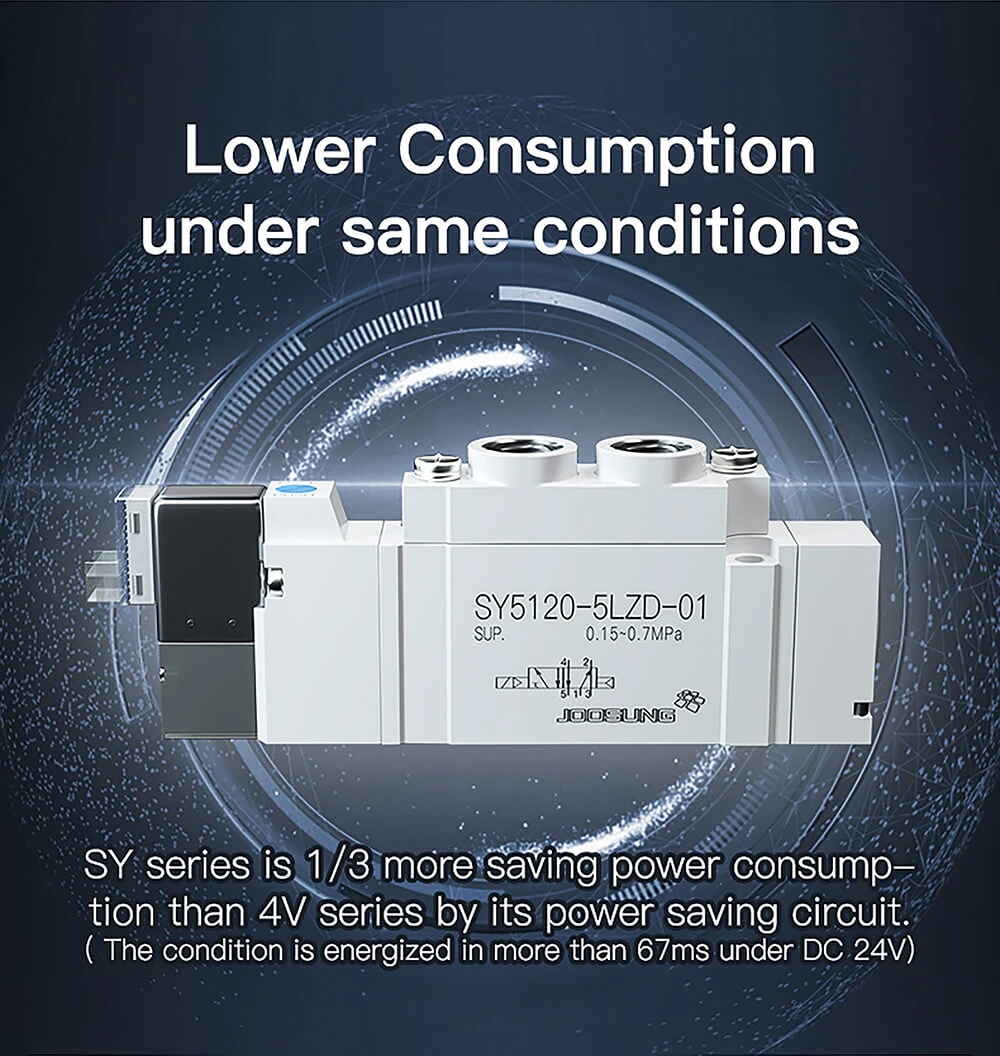

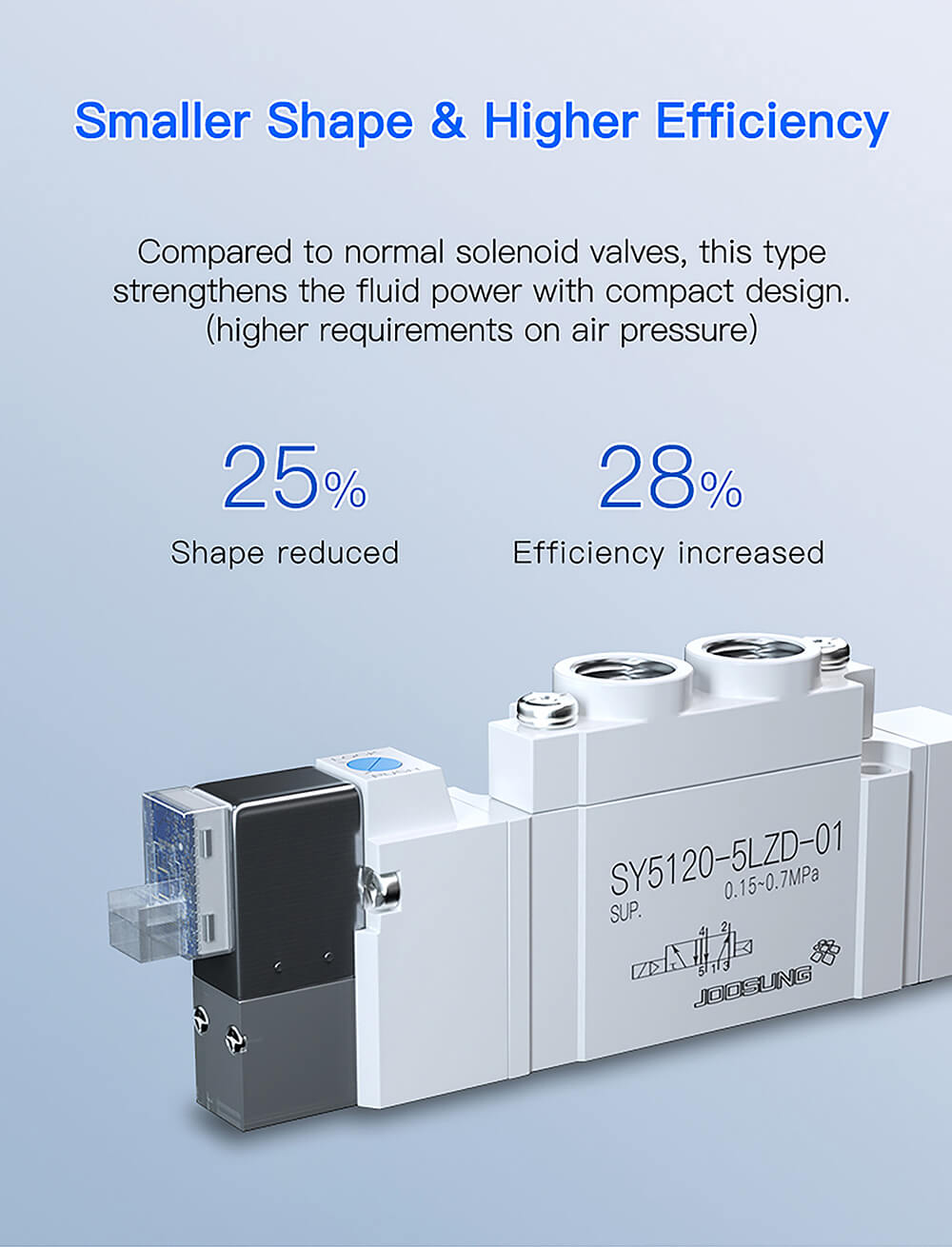

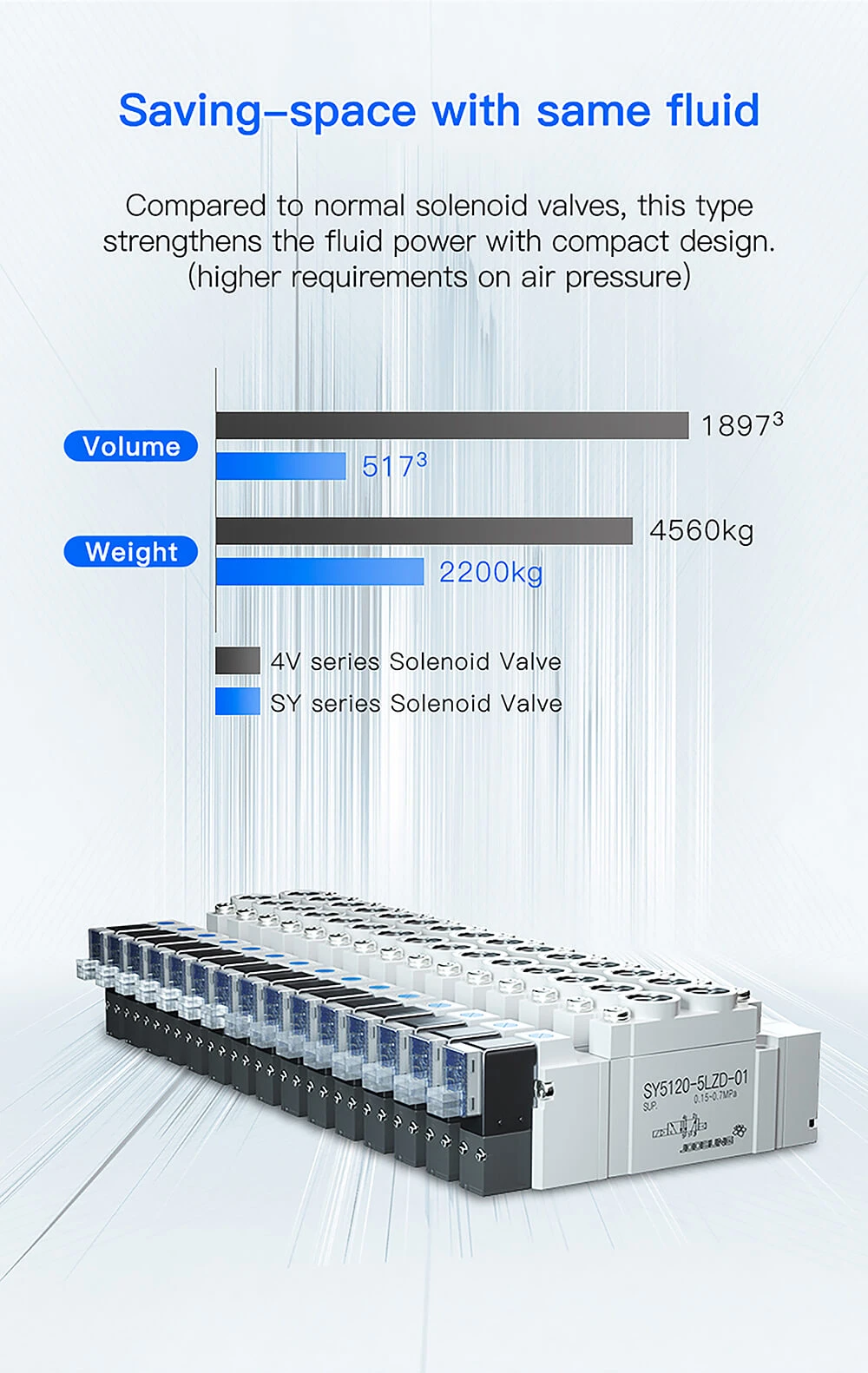

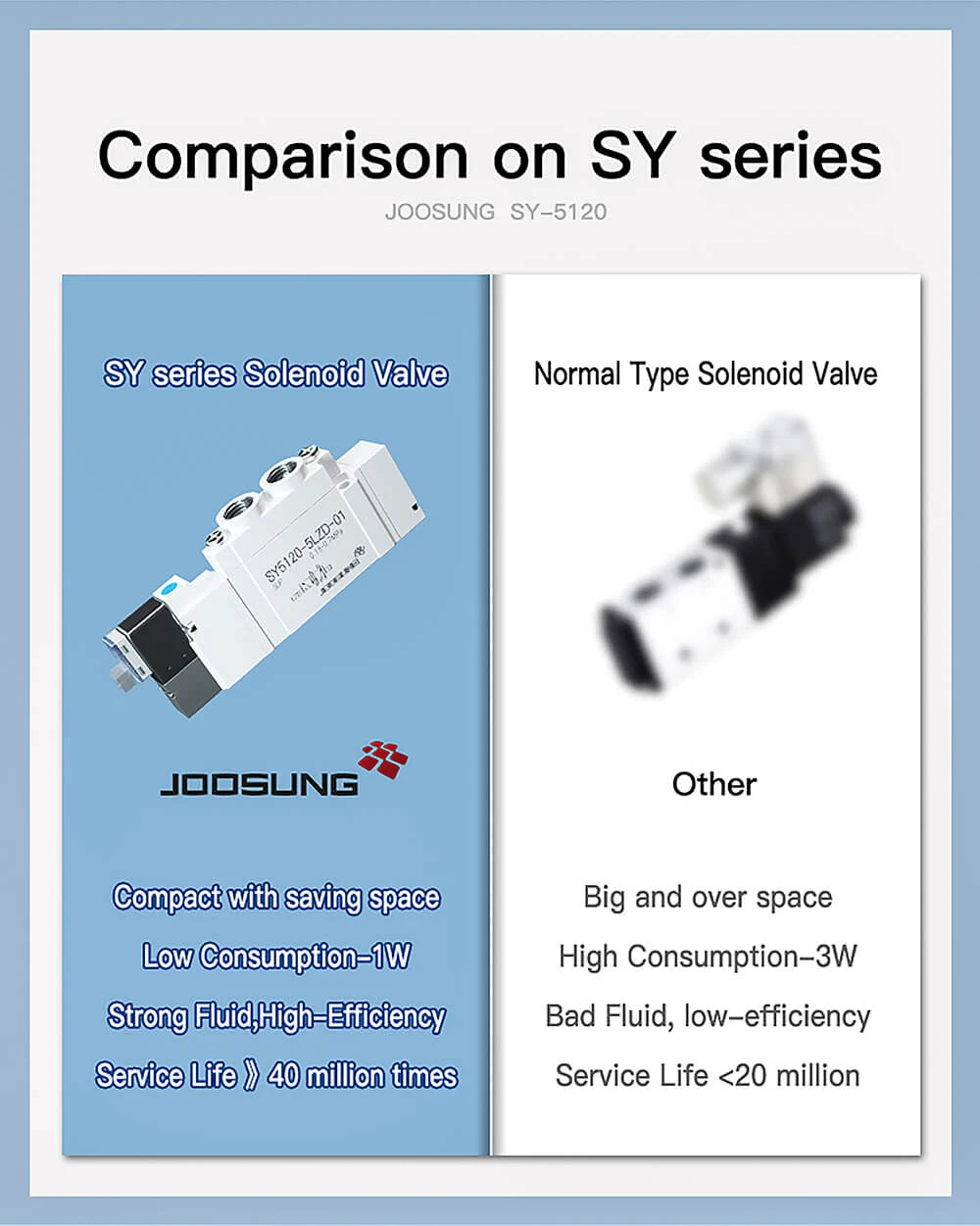

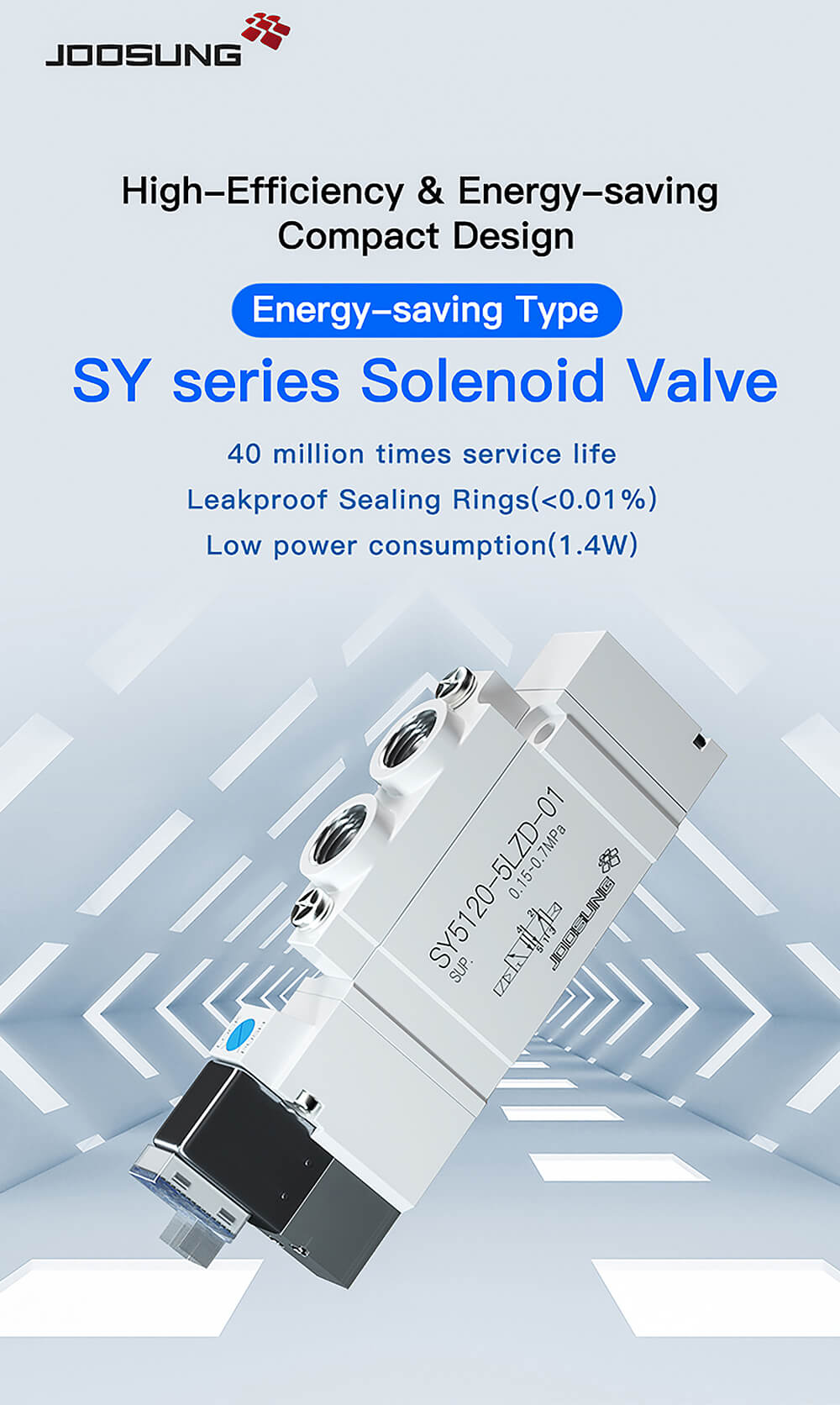

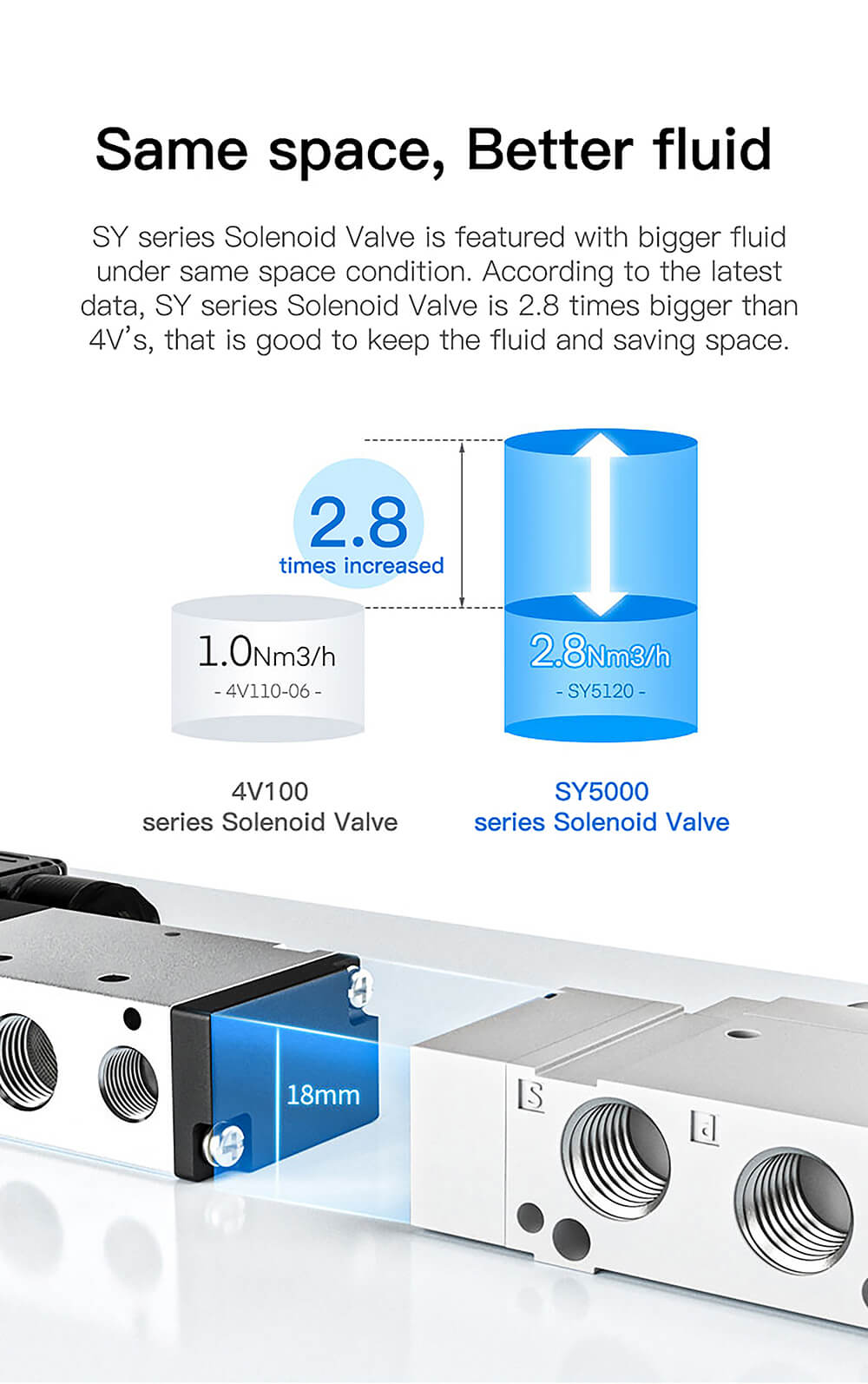

SY5420 - 5LOU-C6 pneumatike solenoid valve
Imikorere yumuzunguruko wa valve isobanura ibyambu bihujwe muri buri leta ya valve.
- Kuri 5/2-inzira-ya valve:
- Leta 1: Gutanga icyambu (1, P) gihuza icyambu 2 (A). Icyambu cya 4 (B) kirarambiranye binyuze ku cyambu cya 5 (EB)
- Leta 2: Gutanga icyambu (1, P) gihuza icyambu cya 4 (B). Icyambu 2 (A) kirarambiranye binyuze ku cyambu cya 3 (EA)
- Kuri 4/2-inzira-ya valve:
- Leta 1: Gutanga icyambu (1, P) gihuza icyambu 2 (A). Icyambu cya 4 (B) umunaniro unyuze ku cyambu cya 3 (R)
- Leta 2: Gutanga icyambu (1, P) gihuza icyambu cya 4 (B). Icyambu cya 2 (A) kirarambiranye binyuze ku cyambu cya 3 (R)
|
Urukurikirane |
SY3000 |
SY5000 |
SY7000 |
SY9000 |
|
|
Amazi |
Umwuka |
||||
|
Imbere umuderevu |
2 umwanya ingaragu |
0.15 kugeza 0.7 |
|||
|
2 umwanya kabiri |
0.1 kugeza 0.7 |
||||
|
3 umwanya |
0.2 kugeza 0.7 |
||||
|
Ibidukikije na amazi ubushyuhe (C) |
-10 kugeza kuri 50 (Nta gukonjesha) |
||||
|
Gukora |
2 umwanya ingaragu, kabiri |
10 |
5 |
5 |
5 |
|
3 umwanya |
3 |
3 |
3 |
3 |
|
|
Kurenga intoki (Igikorwa cyintoki) |
Non - gufunga ubwoko |
||||
|
Uburyo bwo gutwara indege |
Ubwoko busanzwe bwimyuka yibanze na pilote |
||||
|
Amavuta |
Ntabwo bisabwa |
||||
|
Icyerekezo cyo kuzamuka |
Ntarengwa |
||||
|
Ingaruka / Kurwanya Vibration (m / s²) Icyitonderwa) |
150/30 |
||||
|
Uruzitiro |
Umukungugu wumukungugu (* DIN terminal na M8 umuhuza: IP65) |
||||
