Ibicuruzwa Ibisobanuro

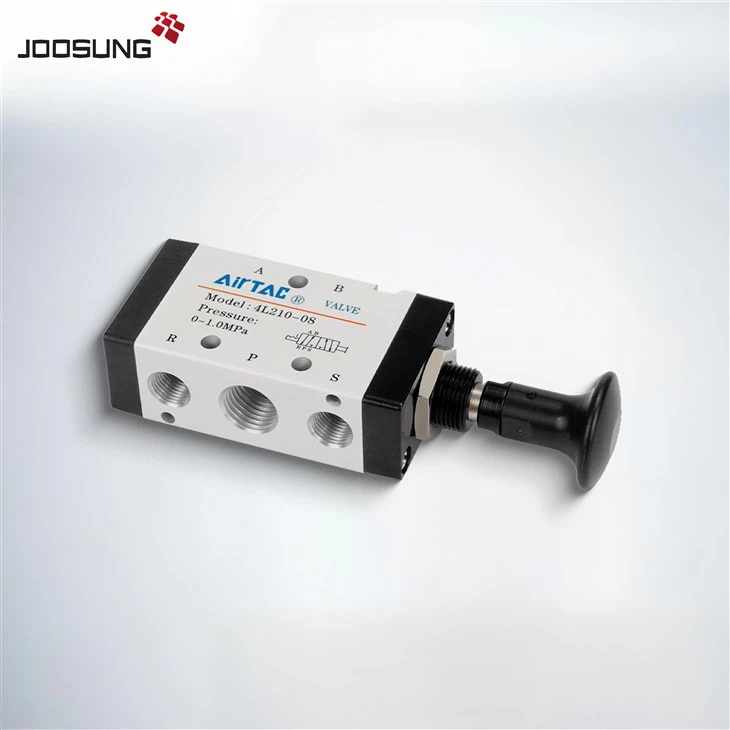

Urukurikirane rwa 4l pneumatike ikiganza cyateguwe kugirango utange intoki zitaziguye kandi zoroshye zo kugenzura ikirere gitemba mubiciro bitandukanye byinganda. Gukoresha mugukurura ikiganza, iyi valve ituma icumu ryihuse kandi zihamye zihamye udasabye ibikorwa byamashanyarazi cyangwa umuderevu. Igishushanyo cyabo cyoroshye kandi kiramba kibafasha gukoresha mu mashini, ibikoresho byo kwipimisha, no gukora imirimo yo kubungabunga intoki cyangwa kugenzura byihutirwa birakenewe. Nkumuteguro wizewe mu Bushinwa, dutanga 4l Urukurikirane rukurura ibiciro hamwe nibiciro byo guhatanira no kuboneka kwizewe kugirango umusaruro wawe ukeneye kwisi.
|
Uburyo bwo gutumiza4l urukurikirane rwa pneumatic ikiganza |
||||
|
4L 2 30C 08 □ |
||||
|
① ② ③ ④ ⑤ |
||||
|
①moder |
②Code |
Ubwoko |
Ingano |
Ubwoko |
|
4L: Gusubira mu mva |
2: 200 |
10: 5/2 |
06:1/8" |
Ubusa: pt |
|
3: 300 Urukurikirane |
08:1/4" |
|||
Shakisha uyumunsi kubisobanuro byuzuye, kataloge yibicuruzwa, hamwe nibiciro byiza kuri 4l series pneumatike ikiganza cyo gushimangira ubushobozi bwo kugenzura intoki.
4l urukurikirane rwa pneumatic ikiganza gikurura valve tekinike
|
4l urukurikirane rwa pneumatic ikiganzaIbisobanuro by'ingenzi |
|||||
|
Icyitegererezo |
4L110-06 |
4L210-06 |
4L210-08 |
4L310-08 |
4L310-10 |
|
Amazi |
Umwuka (kugirango ushungururizwe na40μm uyunguruzo eleter) |
||||
|
Gukora |
Igenzura ryintoki Ubwoko bukora neza) |
||||
|
Ingano y'icyambu [Icyitonderwa1] |
1/8 |
1/4" |
3/8" |
||
|
Ingano ya Orifice (CV) |
10.2mm² |
4L210-08: 17.0m² |
4L310: 28.0m² |
||
|
Ubwoko bwa Valve |
5/2 |
||||
|
Guhisha [Icyitonderwa2] |
Ntibisabwa |
||||
|
Urutonde |
0 ~ 1.0MPA (0-145psi) |
||||
|
Igitutu gihamya |
1.5MPA (215psi) |
||||
|
Ubushyuhe |
-20 ~ 70 |
||||
|
Umubiri |
Aluminumalleyy |
||||
4l110
4l210
4L310 urukurikirane
