Indwara ya pneumatikeubwoko n'amahame
Silinderi ni iki? Ibigize bihindura ingufu zumuvuduko wumwuka uhumeka imbaraga zingufu za mashini kugirango utere uburyo bwo gukora umurongo ugaruka, kwizunguruka, no kuzunguruka byitwa silinderi, bizwi kandi nka pneumatic actuator.
Silinderi igenda kumurongo ugororotse irashobora gusohora imbaraga, mugihe silinderi ihindagurika na moteri ya pneumatike izunguruka irashobora gusohora umuriro. Umwuka wo gufata ikirere hamwe nigikombe cya vacuum urashobora gukoreshwa mugutora no gushyira ibintu.
1. Icyerekezo cyerekana umurongo
Mubintu bikora pneumatike, ikoreshwa cyane ni silinderi yo kugendagenda kumurongo. Imiterere igabanijwemo piston - nubwoko butari - piston - (nka diaphragm - ubwoko). Diaphragm - ubwoko bwa silinderi bufite imikorere myiza yo gufunga, nta kurwanya ubukana, kandi ntibisaba amavuta, ariko inkoni ya silinderi ni ngufi. Bakoreshwa cyane mugukata hamwe nindi mirimo mugucunga umusaruro. Ubwoko bukoreshwa cyane ni piston - ubwoko bwa silinderi.
Mugihe uhisemo silinderi ya piston, intambwe yambere nukwemeza silinderi bore na stroke. Ninini ya silinderi irambuye, niko itera. Nigute ushobora kubara imbaraga zisohoka za silinderi bizasobanurwa mu ngingo ikurikira. Ibikoresho bitandukanye byo kwishyiriraho nabyo bigomba gutoranywa ukurikije aho ushyira.

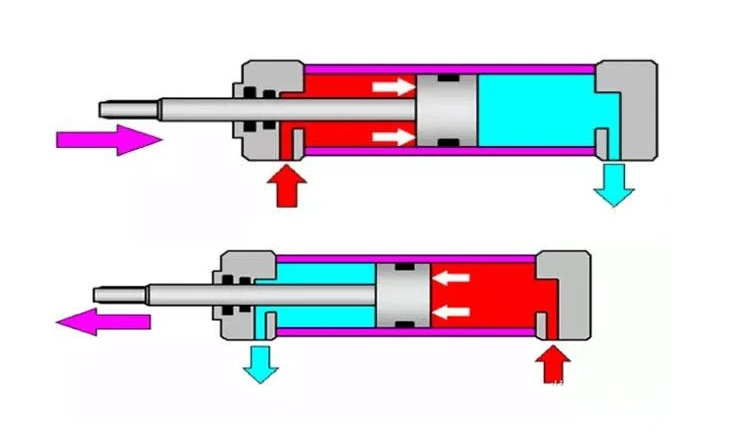

Ihame ryakazi rya silinderi: piston ya silinderi irasubira inyuma

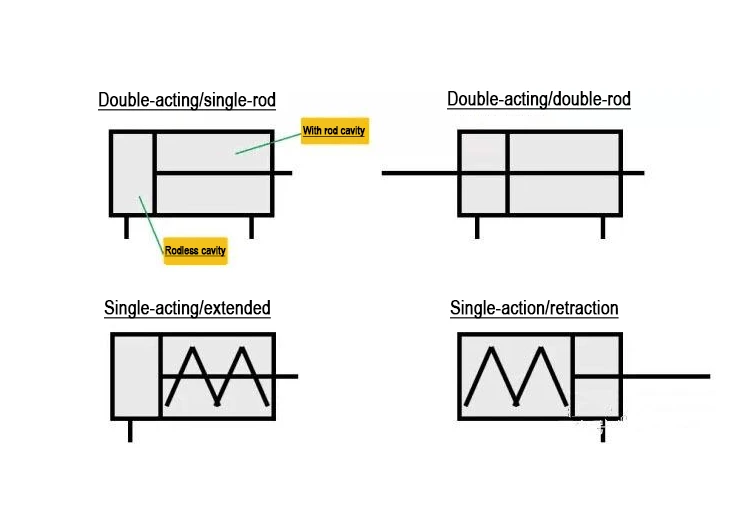

Mugushyiramo amasoko imbere na inyuma ya piston, silinderi ihinduka silinderi imwe - ikora, bisaba umwobo umwe wo gufata umwuka. Iyo igarutse, ihita isubira mu masoko.
2. Kuzunguruka no kuzunguruka silinderi
Kugenda kwa silindari kuzunguruka birashobora kugabanwa muburyo bwo kuzunguruka no kumuvuduko ukabije wa silinderi. Hano hari byinshi byo gusobanura hano, kandi nzabisangiza buhoro buhoro mu ngingo zikurikira.
Iyi moderi izunguruka ni silindari ya MSQB izenguruka, igaragaramo imiterere ya rack na pinion hamwe na - ya silinderi ebyiri, ishoboye kwerekana imbaraga ebyiri zisohoka.
Hano hari impinduka hejuru ishobora guhindurwa no kuzunguruka kuva kuri dogere 0 kugeza 190. Amashanyarazi ya silindari hamwe na silinderi y'urutoki birashobora gushirwa kumurongo wo hejuru kugirango ukore ibikorwa byoroheje byubukanishi.
3. Gufata ikirere, silinderi y'urutoki
Amashanyarazi y'urutoki, nkuko izina ribigaragaza, ni silinderi ikora nk'intoki, zishobora gufata ibintu. Hano hari imyobo yo kwishyiriraho kuri grippers ebyiri, kandi ibikoresho bihuye birashobora gutegurwa ukurikije ibicuruzwa bitandukanye.
Nigute ushobora guhitamo ubwoko bwa silinderi
Icyiciro
Na diameter ya silinderi: micro silinderi, silindiri nto, silindiri yo hagati, silindari nini
Ukurikije ifishi yerekana: silinderi itabujijwe, silinderi yometseho, umwuka -
Mubunini: umwanya - ubwoko bwo kuzigama, ubwoko busanzwe
Guhitamo silinderi
1. Menya silindiri bore - ukurikije umutwaro
2. Menya inkoni - ukurikije intera igenda
3. Hitamo uburyo bwo kwishyiriraho
4. Hitamo icyerekezo cya magnetiki, nibindi
5. Menya ifishi ya buffer
6. Emeza izindi mugereka
