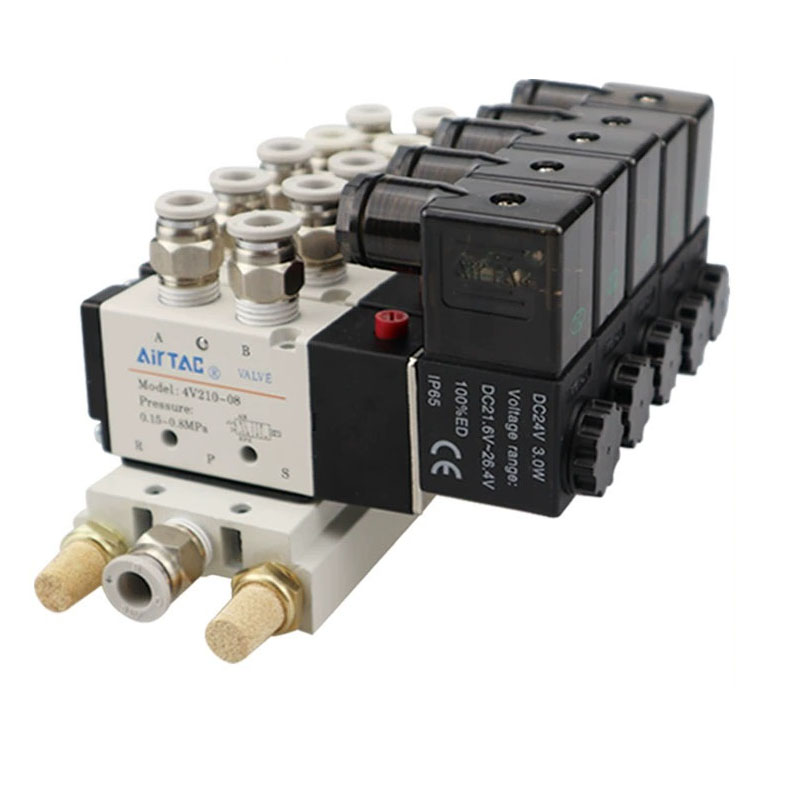

Iburyo bwa 5/2 Solenoidmuri rusange ikoreshwa muguyobora umwuka cyangwa amazi agenda hamwe nimbuga mumiterere ya pneumatike cyangwa hydraulic. Ifite ibyambu bitanu nimyanya (kubwibyo guhamagara 5/2), kandi ni kure yose bikoreshwa mu rwego rwo gukora silinderi zikora kabiri. Hano dore uko ikora:
ibice:
Ibyambu (5 muri rusange):
P (icyambu cyigitutu): urubuga rwo guhuriza hamwe umwuka cyangwa amazi.
Icyambu cya (gukora a): kimwe mu byambu bibiri bijyanye na silinderi.
B (Icrapu b): Ibindi byambu byahujwe na silinderi.
Exh1 (Icyambu cya ExHeus 1): Guhumeka kwa Port A.
Exh2 (Icyambu cya 2): Guhumeka icyambu B.
Coils: Mubisanzwe hariho ibintu bibiri byamashanyarazi (amashanyarazi ya electromagnetic) bigenzura valve igenda. Buri solenoid ikora cyangwa yahagaritswe kugirango yitware ikigo cyimbere cya valve mumyanya.
Igikorwa:
Valve ifite imyanya nyamukuru:
Imikorere 1 (mubisanzwe ifunze):
PR (icyambu cya Strain) gihujwe na (Port A A), na B (Icrapu b) ifatwa hejuru ya Exh2 (Port 2).
Uyu mwanya muri rusange wagura silinderi (gusunika piston muri silinderi zigaragara).
Imikorere 2 (Umwanya wimuriwe):
PR (icyambu cya Strain) gifatiwe kuri B (ibyambu byakazi b), hamwe na (icyambu cya (gukora a) gihujwe na Exh1 (Port 1).
Uyu murimo usanzwe usubiramo silinderi (gukurura Piston yagarutse).
Uburyo ikora:
Iyo igiceri cya solenoid gifite imbaraga, kimuhindura ikiganza cyimbere kuruhare 1 kugirango ushire 2 (cyangwa ubundi).
Mumwanya 1, umwuka wo gukatirwa cyangwa amazi yatembaga icyambu a kugirango wongere Actin, icyarimwe nkicyambu b kirarangiye.
Uruhare rwa 2, umwuka wabaswera cyangwa amazi yatembaga mu cyambu b kugirango usubiremo Actuator, mugihe cyambu ananirwa.
Precis:
Imyitwarire ya 5/2 solenoid iragufasha muri wewe kugirango ukoreshe inzira yo kujyana na silinderi ya silinder ebyiri cyangwa umukoresha kabiri, ihinduranya kugirango ihanagure mumwanya (kwaguka) Yitwa "5/2" Kuberako ifite ibyambu 5 na leta ebyiri zishoboka (imyanya).
